b-panel Neo^® – New

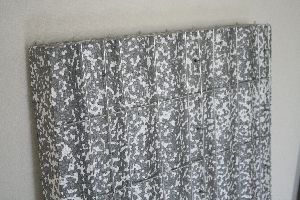

b-panel^® made with special blend of carbon-graphite infused EPS.
German technology, raw material imported from South Korea.
Thermal insulation performance better than regular EPS of 2x density, significantly reducing material requirement and wall thickness.

See here for more details

Specification

Panel sizes :

Modular cutting list (panels delivered cut to size and shape according to your drawings)
Can be ordered in typical modules
1.2 x 3.0 m up to 6.0 m length

EPS Insulation: b-foam Neo^®

Fire-Retardant (FR) blended with graphite-infused EPS
Density : 15 kg/m³

Wiremesh :

Non-galvanized Ø 3 mm vertical, Galvanized Ø 2.5 mm horizontal, U-50
Connector: galvanized Ø 3 mm
Spacing: 7.5 x 8 cm

Plaster thickness and concrete strength :

Structural applications :
K-225; 3 cm x 2
Non-structural / partition applications :
K-150; 2 cm x 2
