b-deck®

High-Performance Thermally-Insulated Floor & Roof Deck

  • Applications: Floor and roof deck
  • Available thickness: 100, 150, & 200 mm
  • Shield against solar heat and ambient outside temperature
  • Rapid installation without formwork
  • Weight:
    FP10x = 125 Kg/m2
    FP10 = 160 Kg/m2
    FP15 = 190 Kg/m2
    FP20 = 220 Kg/m2
  • Maximum span : 8 metres (FP-20)
  • Maximum live load: 400 Kg/m2 (FP-20)
  • Pre-assembled joist reinforcement available (quick-bone┬«)

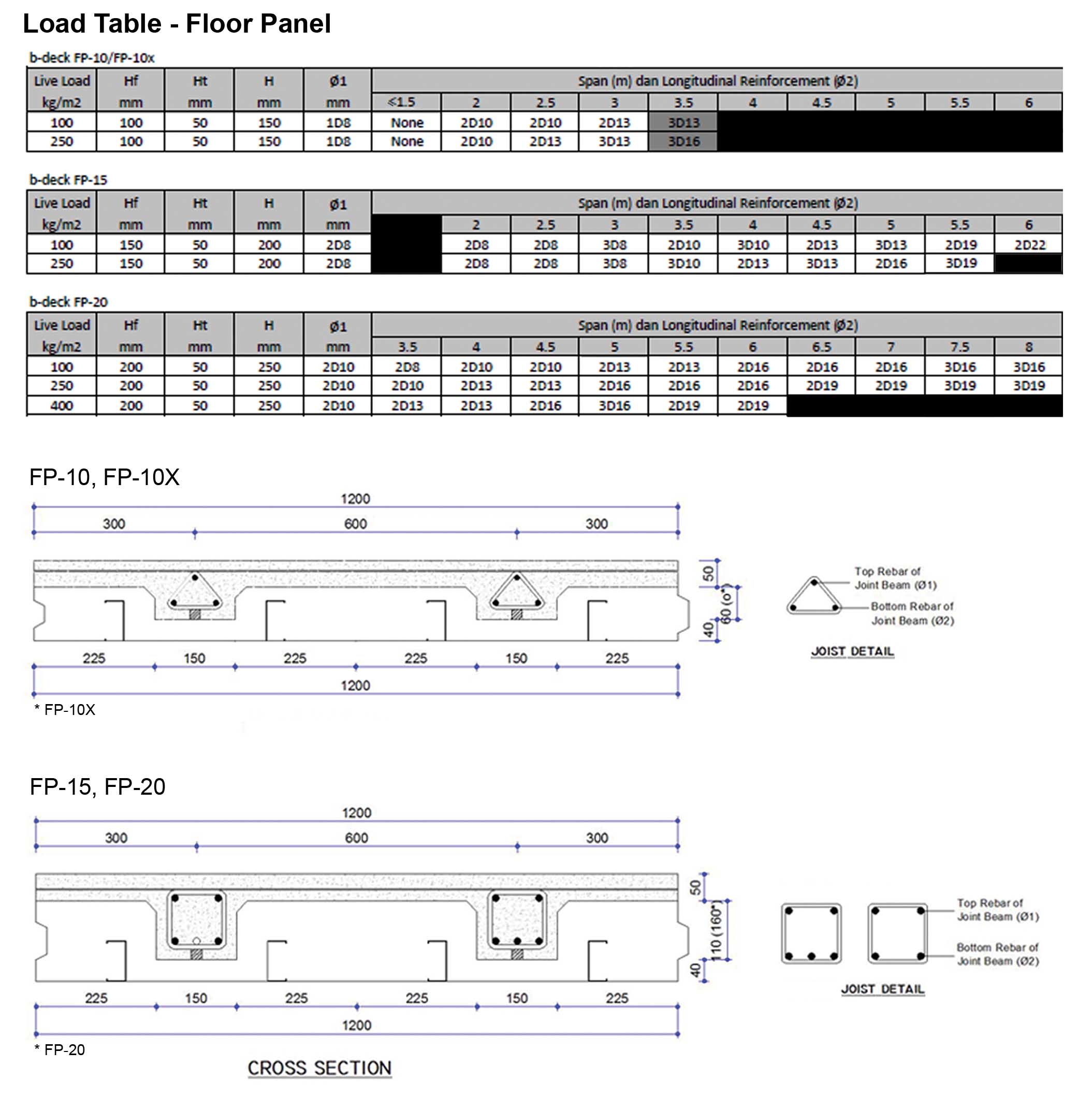

b-deck® Load Table
